Passive Fullrange loudspeakers

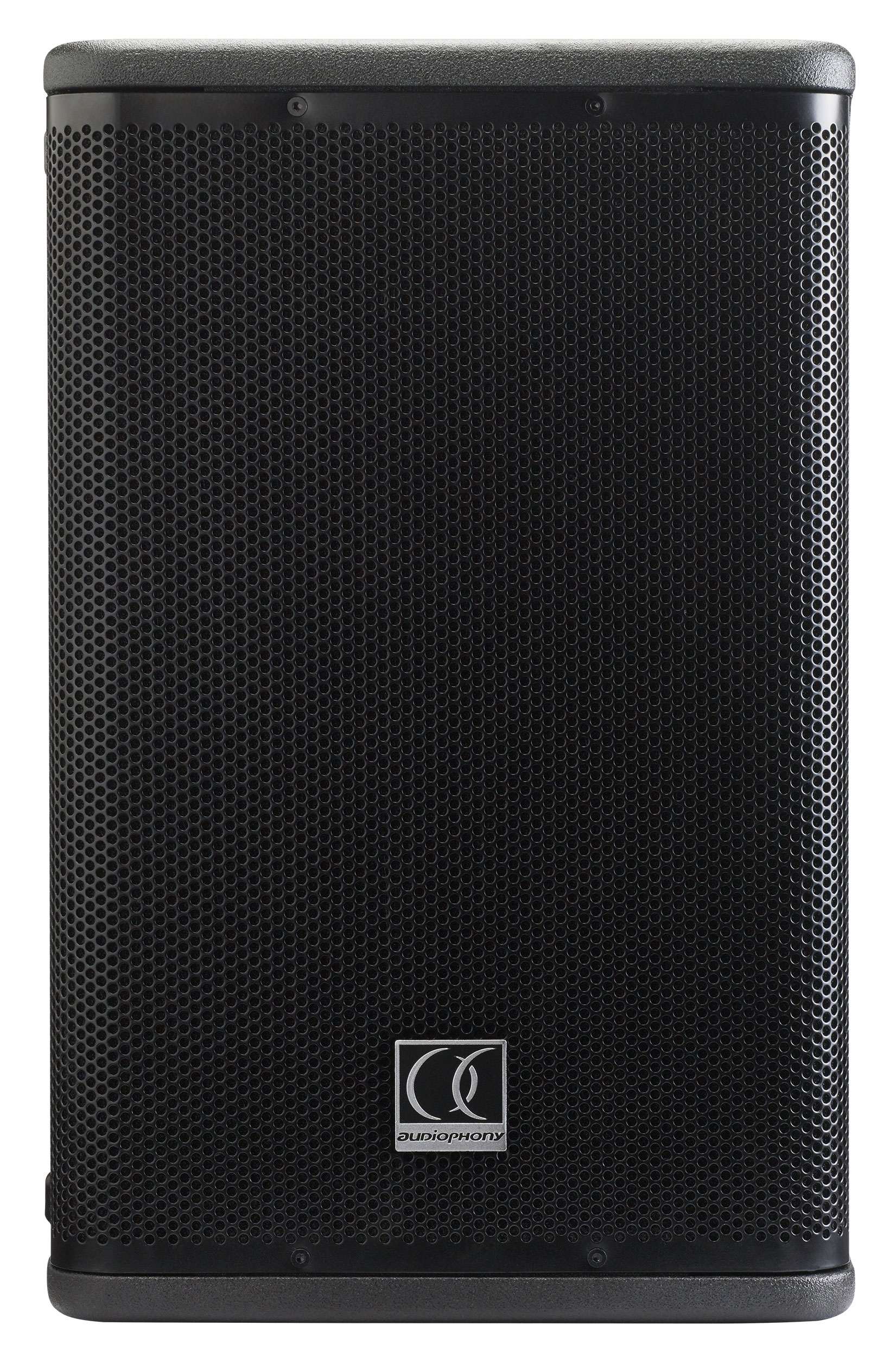

12" active subwoofer 700W + 700W with intgrated DSP - Black Article number: H10761
Eur599.00

Share this with your friends!

• Power output : 700W / 4Ohms + 700W / 4Ohms
• Frequency response : 50 Hz - 200 Hz
• Axial sensitivity (1W/1m) : 96 dB
• SPL max. : 124 dB
• Nominal impedance : 8 Ohms
• Loud-speaker : 12"

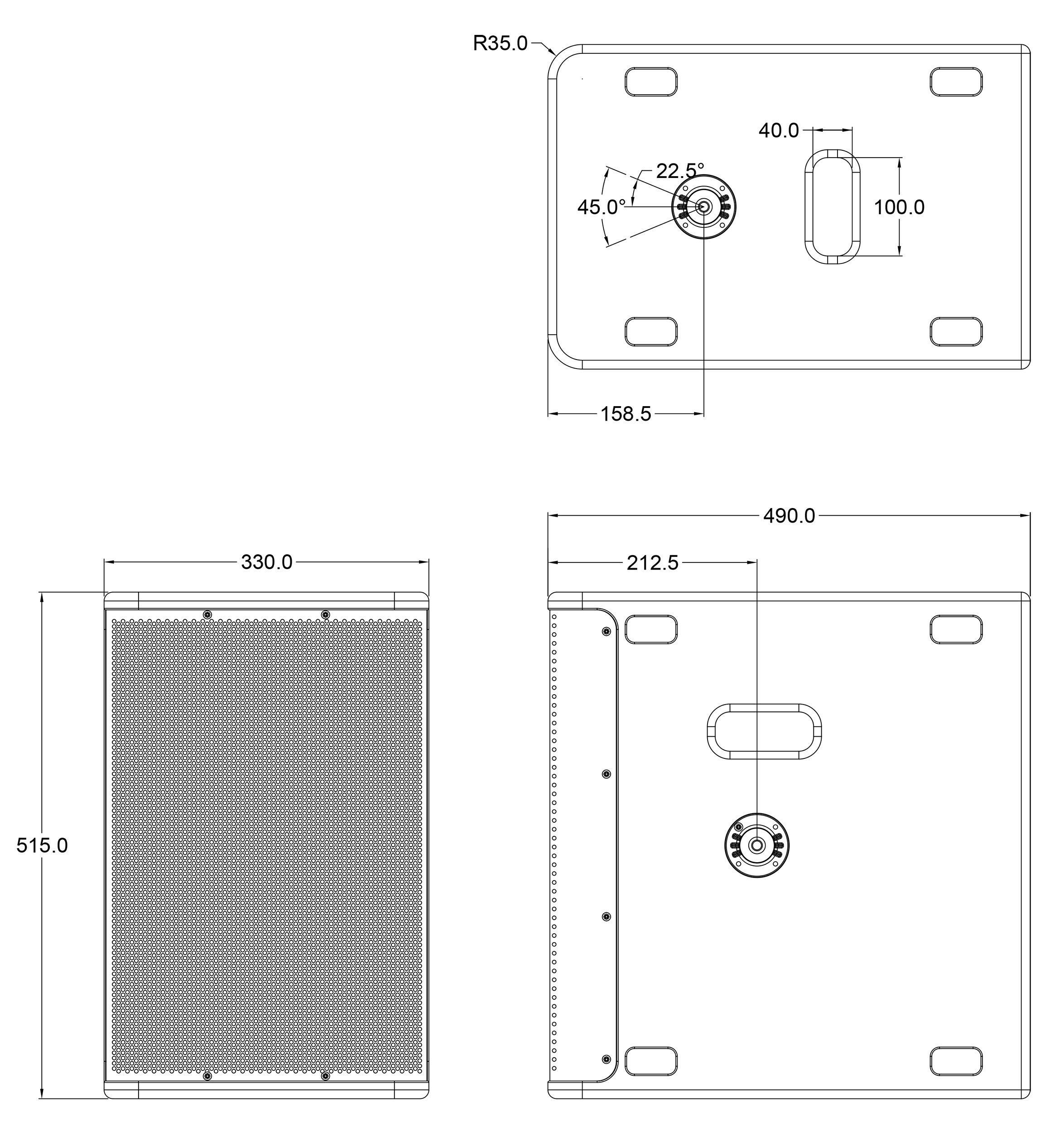

• Size : 350 x 515 x 490 mm
• Net weight : 23.5 Kg

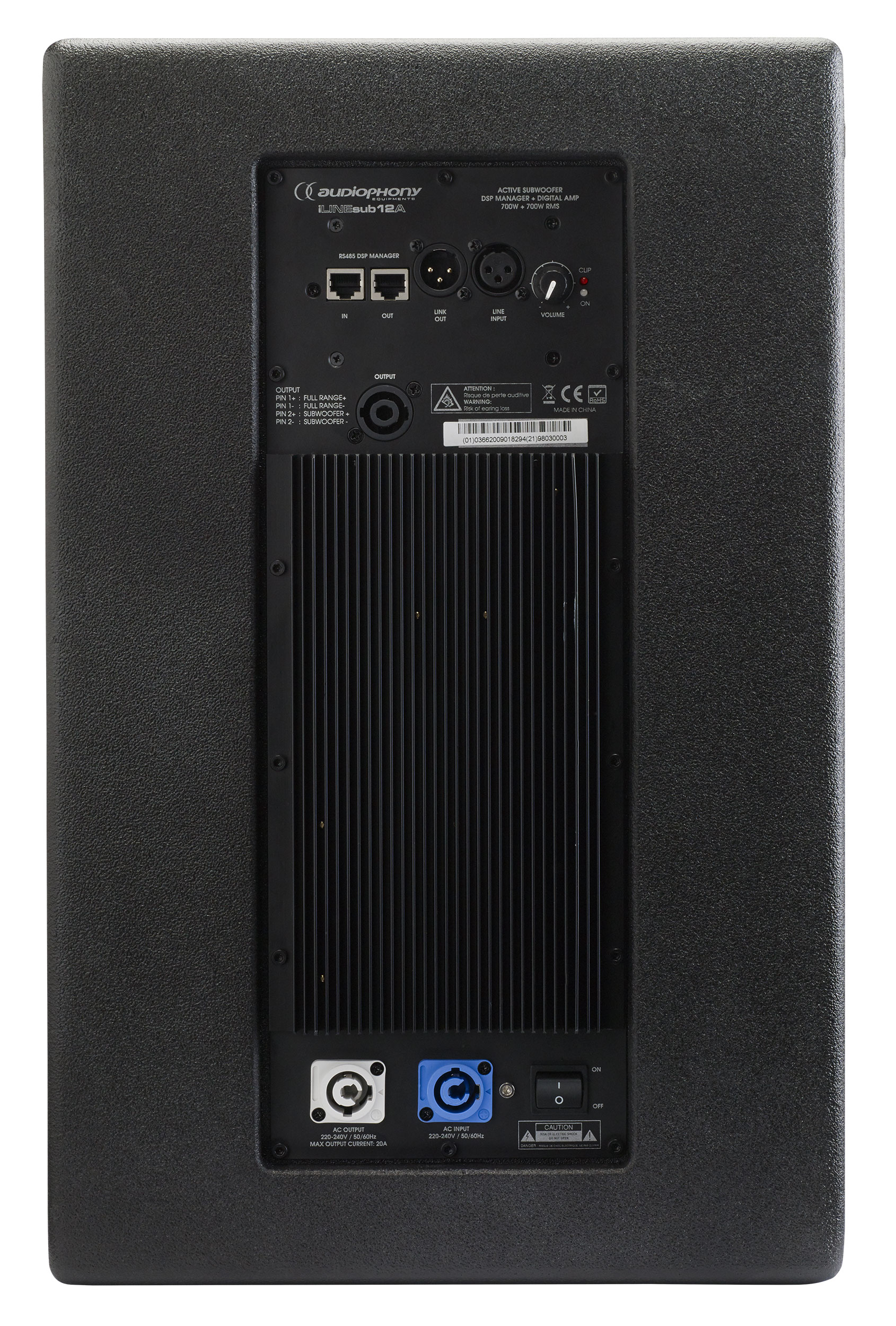

• Connectors :
   - Input :
     - Line level balanced XLR

   - Output :
     - Bass/Trebel powered Speakon :
       - 1+/1- : Full range output
       - 2+/2- : Bass output

   - Power supply
     - Powercon In/Out: AC 220V-240V / 50/60Hz.20A

   - DSP
     - RJ45 In/Out

• Amplification :
   - Total power avaible 700+700 W RMS / 4Ohms :
     - Full range output : 700W RMS / 4Ohms .
     - Bass output : 350W RMS / 8Ohms. + 350W RMS / 8Ohms internal

• Settings :
   - Volume : General level of the system
   - DSP :
     - 28/56 bytes, 50 MIPS
     - System configuration by the software provided with converter iLINEbox ref. 10762

• Material :
   - Finnish birch plywood
   - Polyurea black coating
   - Integral steel grill protection

• Column speaker connexion system :
   - 2 x 35mm base with integrated connector
