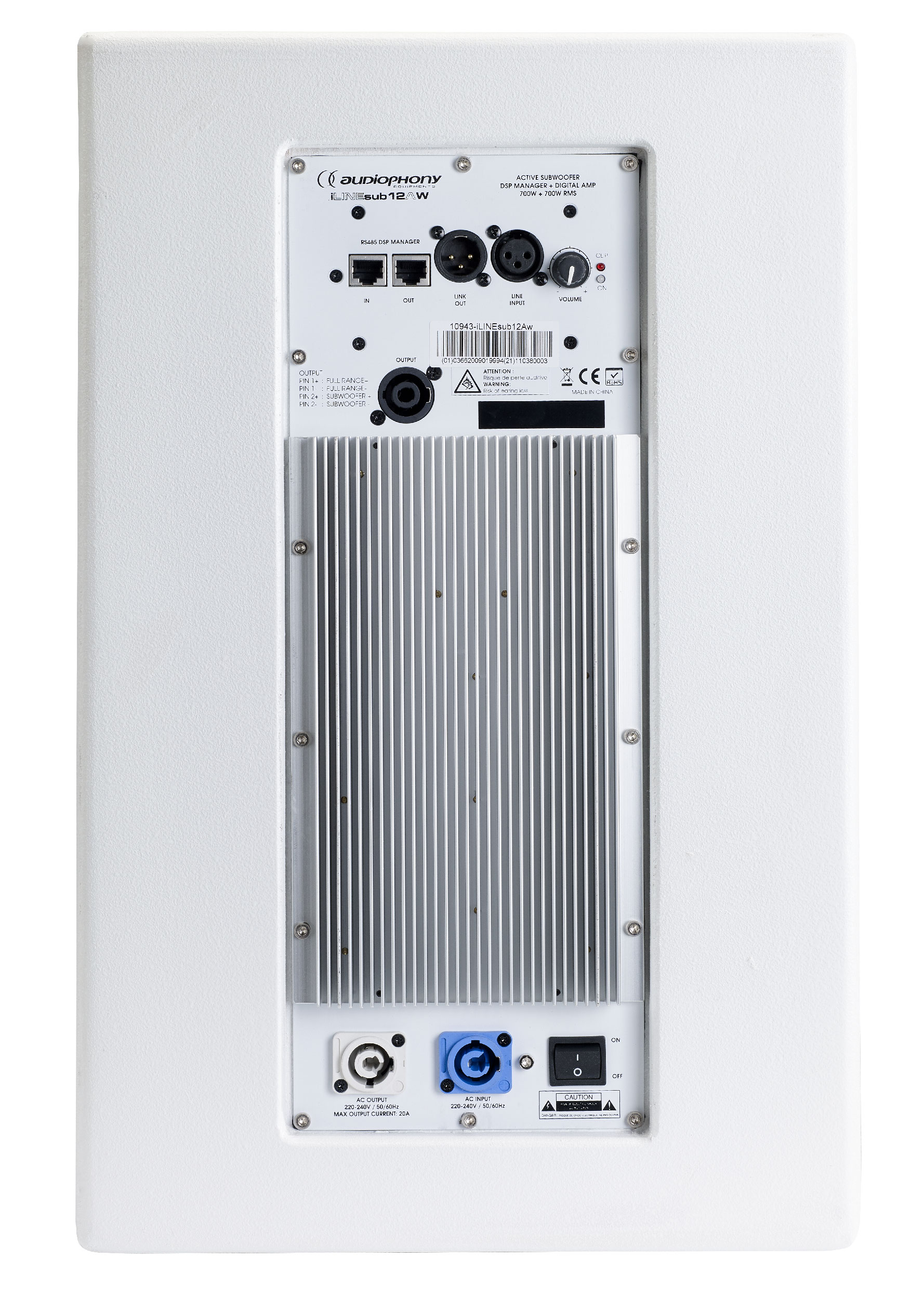

- Output : - Bass/Trebel powered Speakon : - 1+/1- : Full range output - 2+/2- : Bass output
- Power supply - Powercon In/Out: AC 220V-240V / 50/60Hz.20A
- DSP - RJ45 In/Out
• Amplification : - Total power avaible 700+700 W RMS / 4Ohms : - Full range output : 700W RMS / 4Ohms . - Bass output : 350W RMS / 8Ohms. + 350W RMS / 8Ohms internal
• Settings : - Volume : General level of the system - DSP : - 28/56 bytes, 50 MIPS - System configuration by the software provided with converter iLINEbox ref. H10762
• Material : - Finnish birch plywood - Polyurea black coating - Integral steel grill protection

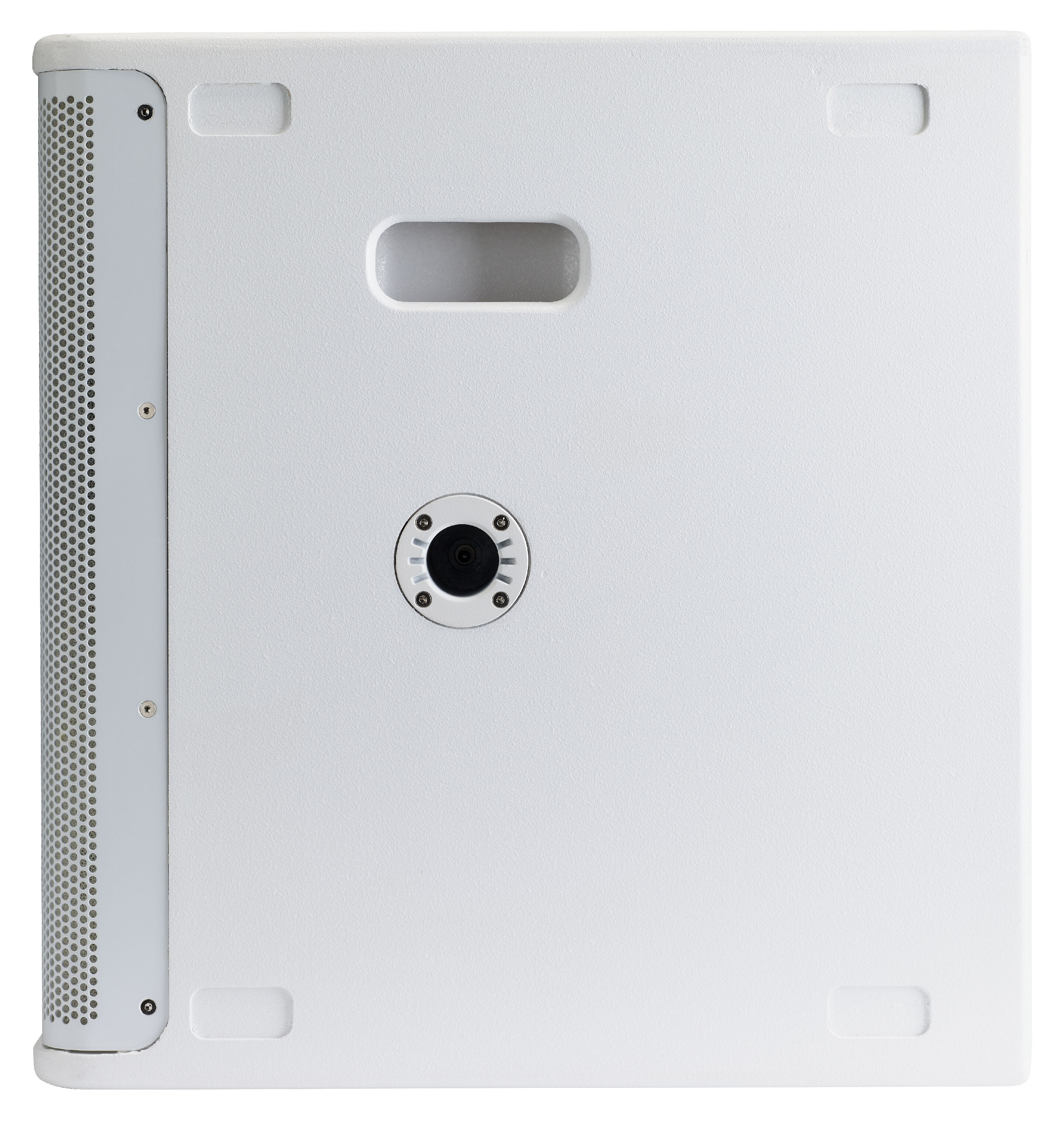

• Column speaker connexion system : - 2 x 35mm base with integrated connector
