Passive Fullrange loudspeakers

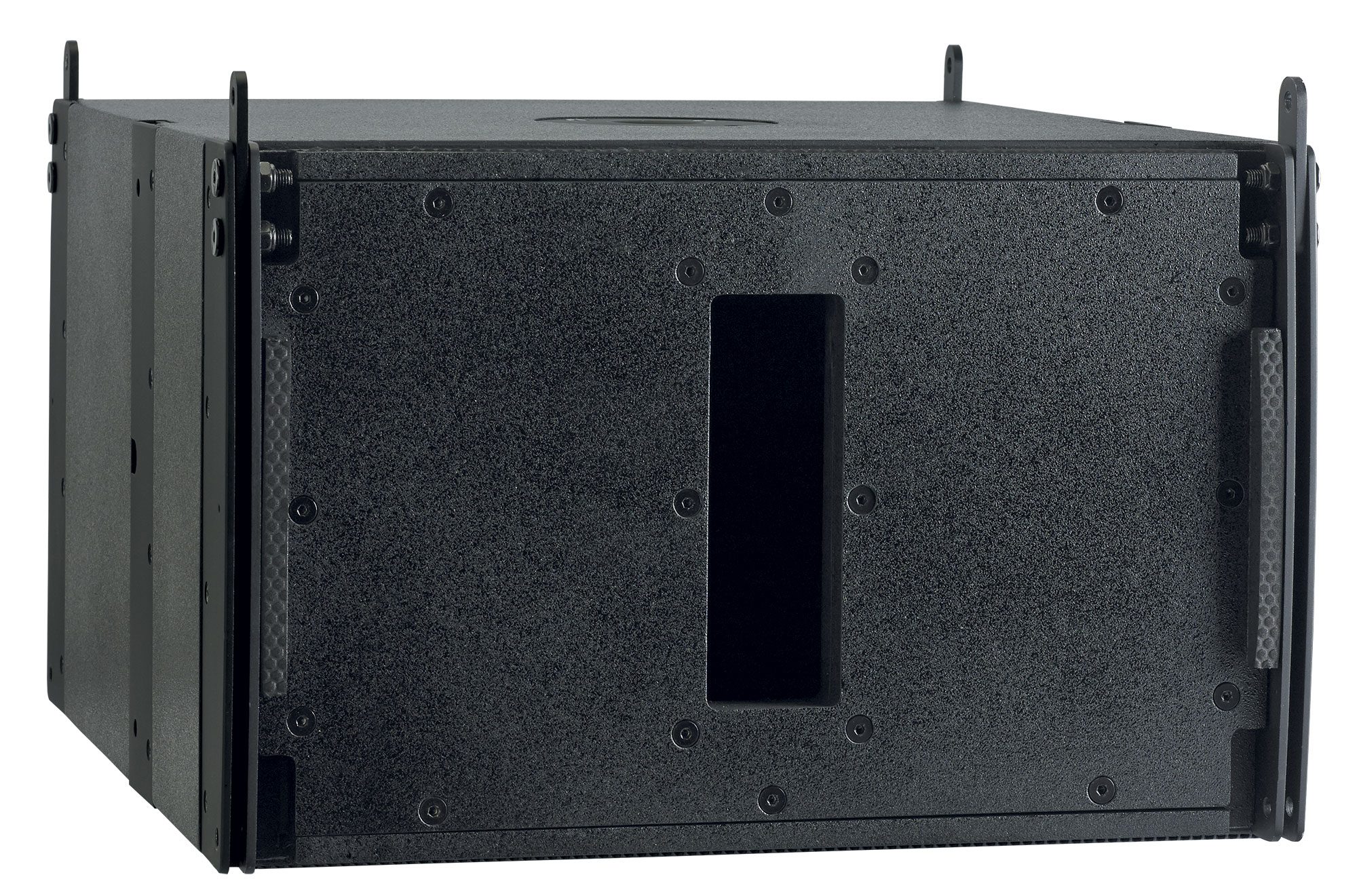

Subwoofer for active, compact line array system 2 x 10" 600W Article number: H10520
General charateristics
• Power output: 300W RMS - 800W max
• Frequency response: 50 - 200Hz
• Max. SPL (@1m): 114 dB
• Nominal impedance: 4 Ohms
• Boomer: 2x 10"
• Dimensions: 485 x 540 x 310 mm
• Net weight: 29,2 kg

Amplification
• Low frequencies: 2 x 320W RMS / Class D - 8 Ohms
• Mid/high frequencies: 2 x 200W RMS / Class D - 8 Ohms

• Inputs
- 2 x Line level Combo XLR/Jack
• Outputs:
- 2 x Line level Combo XLR/Jack
- 2 x amplified Speakon for satellites

• Settings
- Volume: Main volume settings
- Bass: Subwoofer settings
- STEREO / PARALLEL Selector to switch from 2.1 to Line array mode
