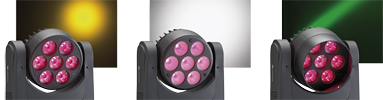

Contest Ninja 7 x 15W QuadLED Artikuls: 22253
Unprecedented power and speed

An unprecedented movement rate, an incredible light output, the new Ninja promises to revolutionize the world of lighting.
  • An exceptional luminous flux
  • Rapid movements
  • LED 15 Watt trichromatic
More brightness

The lyre-7x15QC Ninja is equipped with all new LED 15W OSRAM ®, known for their brightness and stability. Coupled with individual high quality lenses, they deliver a very high light output and quality of incredible colors. Moreover, lyre-7x15QC Ninja offers a separate two zones (center and crown) for the effects of completely new color control.




Impressive movements

Discover a new way to think about lighting.
The Ninja-7x15QC offers your shows an incredible dynamism thanks to its extremely fast and precise movements.
Scans in rhythm, slow tracking shots, dry movements, she excels in all types of travel with ease

The colored beams

The lyre Ninja offers the possibility to independently control the center and the crown of his slab LEDs for uniform or multicolor beams.







A flexible beams

The lyre-Ninja 7x15QC offers 3 hours for maximum versatility, thanks to a supplied accessories game levels
- Individual lenses offer original opening 11°
- The frost filter is a flow diffuser for an effect wash with an aperture of 20°
- The Spoiler is a visor flux concentration effect for a beam with an aperture of 9°



Make your settings right out of the Flight

The new system configuration lyre-7x15QC Ninja is based on an internal battery to make all the settings without the lyre is supplied with 220 V.
So you can assign the projector and change its operating parameters before even thinking placement and connection of the lyre.

Patch DMX assignable

Functioning based on 15 DMX channels, the Ninja-7x15QC offers the possibility to create your own DMX patch, ordering functions in the order you want.
Everything is done through a clear menu, easy to use, and taking full advantage of the large LCD screen.

SPECIFICATIONS:

Light source
  • 7 LED 15W OSRAM
  • 1 in 4 colors Red, Green, Blue and White on the same source
  • Estimated life 50 000 hours
  • Low temperature, low power consumption, can work for several hours without interruption
Colours
  • Set the color of the center and the independent crown
  • Macro color
  • Preset colors
Effects
  • Strobe variable flashes from 1 to 20 per second and random strobe
  • Variable electronic dimmer from 0 to 100%
Controls
  • Standard DMX-512
  • From 15 to 21 DMX channels
  • Patch assignable to all channels
  • 7 internal programs accessible from DMX and modifiable
  • Internal musical programs
  • Automatic detection of DMX or Master / Slave
  • LCD display with drop-down menu for the assignment and the choice of different modes
  • Memory setting on battery for addressing and the choice of modes without 230V
  • Compatible RDM for feedback to the console
Movements
  • Pan and Tilt with 8 or 16 bit resolution
  • Range: Pan 540 or 630 ° - 256 ° Tilt
  • Variable speed from the menu or DMX
  • Position Memory and automatic repositioning
Optical
  • Beamwidth 10 °
  • intensity of 4200 Lux at 5m
Other features
  • Adjustable fan speed
  • Bracket with hook 1/4 turn Omega
  • Power consumption: 140W max.
  • Power Supply: AC 100/230V - 50/60Hz
  • Net Weight: 5.5 Kg
